The RIBA Plan of Work is a framework used in the UK to guide the design, construction, and delivery of building projects. It is divided into several stages, each focusing on different aspects of the project.

Stage 0 – Strategic Definition:

This stage involves defining the project’s strategic objectives, understanding the client’s requirements, and exploring the feasibility of the project. It also includes establishing the budget, timeline, and overall goals.

Stage 1 – Preparation and Brief:

The project brief is developed in more detail during this stage. It includes outlining the scope of the project, setting design principles, confirming the budget, and defining the schedule. Feasibility studies, site appraisals, and consultations with stakeholders are conducted.

Stage 2 – Concept Design:

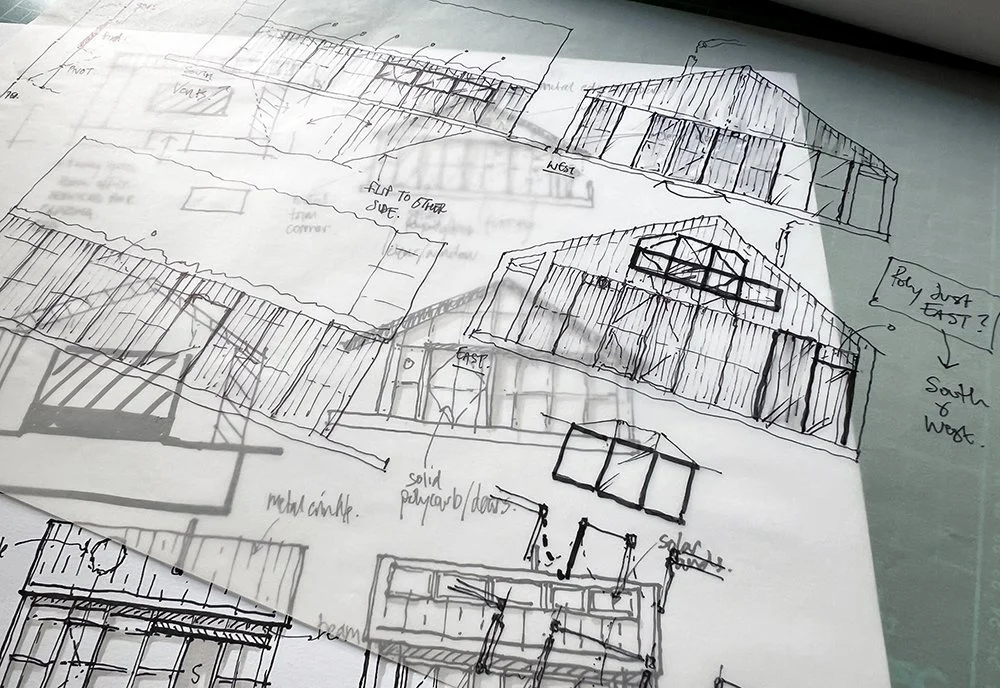

At this stage, initial design concepts are developed. It includes creating design options and considering factors such as sustainability, space planning, and general appearance. The project’s overall direction is agreed upon, and rough drawings and sketches are created.

Stage 3 – Developed Design:

The design is refined in detail. Structural, mechanical, and electrical systems are integrated into the design. This stage includes producing more detailed drawings and ensuring the design is aligned with the project’s requirements. The design is presented for approval by the client and relevant stakeholders.

Stage 4 – Technical Design:

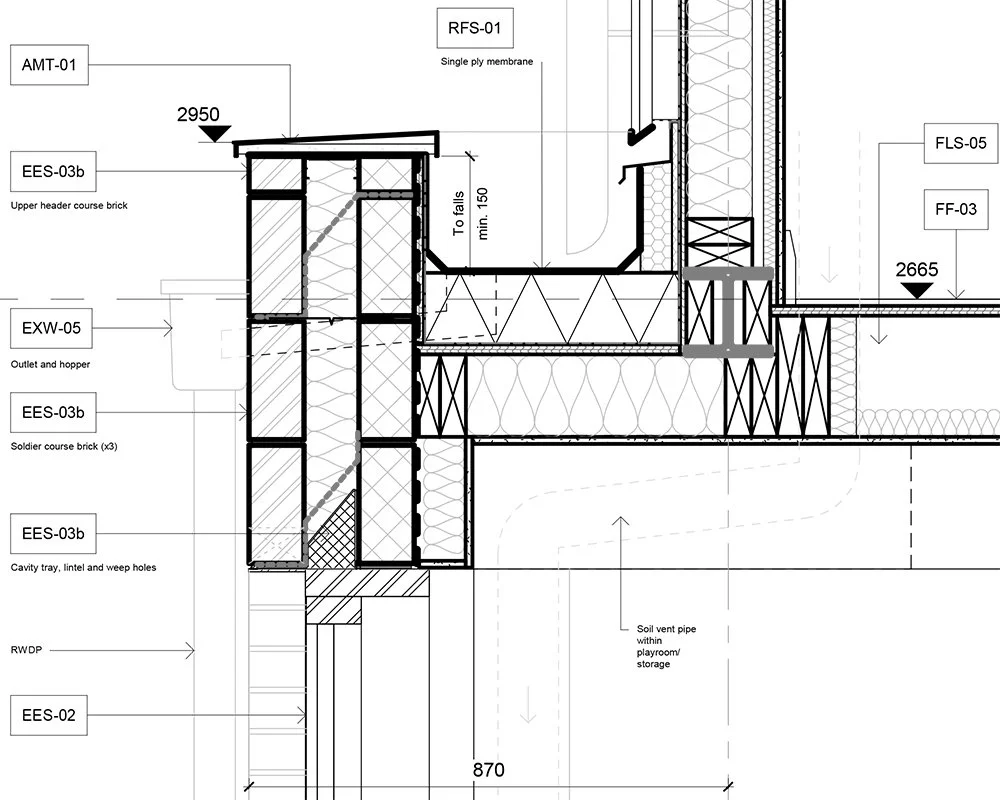

Detailed technical information is prepared, including final construction drawings, specifications, and material choices. The design is fully developed, and all aspects of the project are technically ready for construction.

Stage 5 – Construction:

After tendering, construction begins. During this stage, the architect is involved in overseeing the construction process to ensure the building is being constructed as per the approved designs. The architect may also address any issues that arise on site during the construction phase.

Stage 6 – Handover and Close Out:

This is the completion phase. The building is handed over to the client once construction is finished. It includes final inspections, making sure that everything is in place, and resolving any last-minute issues. The necessary documentation, including as-built drawings, is provided.

Stage 7 – In Use:

After the building is occupied, this stage focuses on evaluating its performance. It involves monitoring the building’s use, maintenance, and gathering feedback from the client. This stage also includes post-occupancy evaluations and making any necessary adjustments to improve the building’s performance.

These stages provide a clear and structured process for managing a building project, ensuring that each phase is properly planned and executed.

Building regulations drawings are essential for ensuring that a construction project complies with the required legal standards set by the government. These regulations are there to make sure buildings are safe, healthy, and energy-efficient and are separate from obtaining planning permission, which focuses on the use and appearance of a development in its local context.

Building regulations approval can be sought through the local council’s building control department, which is often more cost effective or through a firm of independent registered building control approvers who tend to be more responsive.

In most cases we advise that this process should be sought after planning permission is secured. Two methods of building regulation approval are available, either ‘Full Plans’ or ‘Building Notice.’

‘Full Plans’ requires more information to be submitted prior to construction yet more feedback from the approver earlier in the process.

A ‘Building Notice’ allows for the flexibility to start the construction process to begin sooner yet requires more site visits by building control during the construction process in order to sign-off the works. As a result, this method usually requires more management by the architect during the construction process to address any variations to the design ordered by the registered approver.

Compliance with Legal Requirements:

Building regulations in the UK are a legal necessity. They set out the minimum standards for construction in areas such as safety, energy efficiency, fire safety, structural integrity, and accessibility. Having building regulations drawings ensures that your project meets these standards, helping you avoid potential fines, legal issues, or the need to redo work.

Safety:

One of the main aims of building regulations is to ensure the safety of the people using the building. These regulations cover various aspects, such as structural stability, fire prevention, and means of escape in an emergency. Building regulations drawings ensure the design complies with these safety requirements, reducing the risk of accidents or failures.

Approval from Local Authorities:

In order to start construction, building regulations drawings must be submitted to the local council for approval. The council reviews the plans to make sure they meet safety and health requirements, as well as environmental and accessibility standards. Without approval, construction cannot legally proceed.

Avoiding Future Issues:

If your construction doesn’t comply with building regulations, it could lead to significant delays and additional costs. Building regulations drawings ensure that your project is designed in a way that will pass inspections and help avoid expensive changes or retrofitting later down the line.

Energy Efficiency and Sustainability:

Building regulations in the UK also set requirements for energy efficiency. This includes aspects like insulation, heating, lighting, and ventilation. The regulations ensure that your building is as energy-efficient as possible, helping to reduce energy bills and the environmental impact.

Insurance and Financing:

Financial institutions, such as banks, require proof that a construction project meets building regulations before providing loans or insurance. Building regulations drawings act as evidence that your project complies with all relevant laws and standards, which can help secure necessary funding and insurance coverage.

Guidance for Contractors:

Building regulations drawings provide detailed guidance for builders and contractors on what is required in the construction process. These drawings clarify how to meet the regulations and ensure work is carried out to the required standard. This helps avoid mistakes and ensures that construction proceeds smoothly.

At RIBA Stage 4 – Technical Design, the architect plays a critical role in ensuring the technical design is complete, accurate, and ready for construction. They ensure compliance with regulations, manage the integration of various design elements, provide detailed specifications, optimise costs, and address any potential challenges before the work begins. Their involvement at this stage is essential for a smooth transition to construction and the successful delivery of the project.

Finalising Design Details:

The architect refines the design created in earlier stages, ensuring that it is fully compliant with building regulations and other statutory requirements. This includes completing the detailed drawings for all building elements (e.g., structural, mechanical, electrical, and interior design).

They ensure that the design is practical, aesthetic, and aligned with the client’s initial vision while considering construction constraints.

Coordination of Consultants:

At Stage 4, architects typically work closely with other consultants (such as structural engineers, M&E engineers, and quantity surveyors) to ensure that all elements of the design are integrated and work together seamlessly.

The architect ensures that all the specialists’ input is coherent and that the design is optimised in terms of function, cost, and buildability.

Compliance with Building Regulations:

The architect ensures that the technical design complies with building regulations and other legal requirements (such as health and safety, fire safety, sustainability, and accessibility).

They review the technical details to ensure the design is in line with the previously approved planning permission and that it can be constructed without issues.

Preparation of Detailed Specifications:

The architect prepares comprehensive specifications for materials, finishes, and construction methods. These specifications provide clear instructions to contractors, reducing the potential for misunderstandings and ensuring quality control throughout the building process.

Reviewing and Finalising Contract Documents:

The architect prepares or contributes to the contract documentation, which includes the detailed drawings, specifications, and any other documents that the contractor will use to carry out the work.

They ensure that the contract documents are clear, comprehensive, and legally sound, ensuring smooth execution during construction.

Cost Control and Budgeting:

Although the quantity surveyor typically manages the budget, the architect can help review and adjust the design at Stage 4 to ensure the project remains within the agreed budget. They might propose design changes or material alternatives that could help control costs without compromising the quality or performance of the building.

Optimising Buildability:

The architect plays a key role in ensuring that the design is not only visually appealing but also practical and constructible. They identify any potential construction challenges and resolve them, making the design easier and more cost-effective to build.

Facilitating Contractor Selection:

At Stage 4, the architect may assist in selecting a contractor (if this hasn’t been done in earlier stages). They may provide advice on evaluating bids, ensuring that contractors understand the design intent and are capable of delivering the project according to the specified standards.

Sustainability and Performance:

The architect ensures that sustainability goals (such as energy efficiency, environmental impact, and resource use) are achieved. They review the technical design to ensure compliance with sustainability strategies and might specify materials or systems that improve the building’s energy performance.

They also review technical aspects related to the building’s performance, such as thermal comfort, daylighting, acoustics, and ventilation.

Problem-Solving:

If any issues arise during the design process, whether technical, logistical, or related to materials, the architect is key in finding solutions. They may adapt the design to meet unforeseen challenges, ensuring that the project stays on track.

Client Liaison:

Throughout Stage 4, the architect maintains communication with the client, ensuring they are updated on the design progress and any changes that occur. They help the client understand the technical details of the design and make decisions about finishes, materials, and other design elements.

They provide professional advice to ensure that the client’s expectations are met within the project’s budget and scope.

Risk Management:

The architect helps identify potential risks, such as design flaws, buildability issues, or non-compliance with regulations, and works to mitigate them. They ensure that the design is practical, safe, and feasible, reducing the likelihood of delays or disputes during construction.

Building a Clear Construction Plan:

The architect helps create a construction strategy and timeline by liaising with the contractor. This includes managing the project’s sequence, ensuring that all aspects of the build are coordinated and that the contractor has the information needed to proceed smoothly with the construction.

During RIBA Stage 5 – Construction, an architect will provide ongoing support, quality control, problem-solving, and coordination during the construction phase. Their role ensures that the project is executed according to the approved design, meets quality standards, and adheres to the contract. They manage variations, address issues that arise on-site, oversee health and safety, and ensure that the finished building matches your expectations.

The architect is your ally in ensuring that the vision for your project is realised efficiently, within budget, and to the highest quality. Without their involvement, the risk of miscommunication, design compromise, or construction issues increases.

Quality Control and Design Integrity:

Our primary role is to ensure that the construction matches the design intent and materials and details are being implemented correctly. We make regular site visits to ensure that the work is being built to the correct standard and aligns with the specifications set out in earlier stages.

Site Inspections and Monitoring Progress:

LSD Architects will conduct regular site inspections to monitor the progress of construction and check that it adheres to the drawings and specifications. These visits help identify any issues early, preventing delays or defects later in the process.

We also ensure that construction work complies with building regulations, health and safety standards, and contractual requirements, this may be in conjunction with a site visit from Building Control.

Problem Solving and Issue Resolution:

Problems inevitably arise during construction, whether related to materials, technical challenges, or unforeseen conditions. Our expertise is crucial in identifying solutions. We may need to adjust the design to accommodate these challenges or resolve conflicts between contractors, subcontractors, or specialists.

The architect provides guidance on any technical adjustments, ensuring that changes are well-considered and maintain the integrity of the project.

Coordinating with the Contractor and Other Professionals:

An architect acts as a liaison between the client and contractor. We ensure that communication is smooth, and that any changes, delays, or decisions are communicated effectively. This helps keep the project on track.

If the project involves other specialists (e.g., structural engineers, mechanical and electrical engineers), the architect coordinates with them to ensure that their input is implemented correctly and that everything works together cohesively.

Managing Variations and Changes:

Throughout the construction process, there may be changes to the original design due to practical issues, budget adjustments, or client requests. The architect helps manage these ‘variations’ by assessing their impact on the overall project, ensuring they are feasible and cost-effective, and ensuring that the changes are documented and properly implemented.

They also ensure that any variations are in line with the overall vision and do not negatively affect the project’s functionality or aesthetic goals.

Contract Administration and Compliance:

The architect plays an important role in ensuring that the contractor is fulfilling their obligations as outlined in the contract. We monitor the contractor’s work, progress, and compliance with the agreed terms, and they issue formal certificates for payment when necessary.

Architects are also involved in reviewing progress reports and ensuring that the project remains on schedule, within the budget, and to the agreed standard.

Dealing with Defects and Snagging:

After the construction work is completed, the architect will carry out a ‘snagging’ process (final inspections) to identify any defects or unfinished work. This ensures that the contractor rectifies any issues before the project is handed over to the client (practical completion).

We help to ensure that ‘defects’ are properly addressed, and that the quality of the final product is up to the client’s expectations.

Ensuring Health and Safety on Site:

While the contractor is ultimately responsible for health and safety, the architect helps to ensure that health and safety regulations are followed throughout the construction process. They ensure that the project site is safe for workers and that the design meets all safety standards.

The architect can help identify any potential health and safety risks that may arise during construction and work with the contractor to mitigate them.

Advising on Sustainability and Performance:

If the project involves sustainability goals (e.g., energy efficiency, environmental impact), the architect ensures that the building is constructed to meet these goals. We help ensure that sustainable materials are used, energy-saving features are incorporated, and that the design is optimised for long-term performance.

Post-Construction Support:

After construction is complete, the architect continues to be involved in the handover process to ensure everything is completed to standard and that the client receives all necessary documents, warranties, and manuals.

We may also provide post-occupancy advice to the client regarding the use and maintenance of the building. If any issues arise after the building is in use, we can provide guidance on how to resolve them.

LSD Architects can definitely help you select a contractor for your project. Like most architects, we don’t act as the main contractor ourselves, but we can help you navigate the process by providing recommendations, managing the tendering process, evaluating bids, negotiating contracts, and ensuring that the contractor delivers the project to the highest standards.

Providing Recommendations:

We have built up a network of trusted contractors that they have worked with on previous projects. We can provide recommendations for contractors who are reliable, experienced, and capable of delivering the project to the required standard.

We may also recommend a contractor new to us if we feel that the scale of the project, location, skill level or availability are factors at play.

These recommendations can help you save time and avoid potential pitfalls in the contractor selection process.

Preparing Tender Documents:

If you decide to go through a formal tendering process, we can prepare the necessary tender documents. These documents will include detailed information about the project, such as drawings, specifications, and contract terms.

LSD Architects ensures that these documents clearly communicate the scope and requirements of the project, which allows contractors to submit competitive and accurate bids.

Managing the Tendering Process:

LSD Architects can manage the tender process, inviting contractors to submit bids or quotes. We can help you assess and compare the bids to ensure you are getting value for money.

We will ensure the process is fair and transparent, and they will be able to highlight any discrepancies or concerns with a contractor’s proposal.

Evaluating Bids and Proposals:

When bids or quotes come in, we can assist in reviewing them. LSD Architects have the expertise to assess whether the proposed costs align with the project’s scope and whether the contractor’s proposed methods and materials meet the design intent and quality standards.

LSD Architects will typically ask to see evidence of a contractors’ past performance and track records, which can be a critical factor in selecting the right contractor for the job.

Assisting with Contract Negotiations:

Once a contractor is selected, LSD Architects can help with contract negotiations to ensure that the terms are clear, fair, and in line with the project’s needs. We can advise on issues such as timelines, payment schedules, and quality expectations.

LSD Architects can ensure that the contract includes sufficient protections for you as the client and ensures the project is executed to the agreed specifications.

Ensuring Compatibility:

We can assess whether the contractor is the right fit for your project in terms of style, quality, and experience.

We understand that cost is a factor so where a preferred contractor lack experience we will ensure that they understand what we asking them to deliver to ensure the quality still high.

Managing Communication Between You and the Contractor:

Once the contractor is on board, we can act as an intermediary between you and the contractor. This ensures smooth communication and helps resolve any issues that may arise during construction.

We monitor site progress and ensure all necessary information is shared with the contractor ahead of time so that the contractor follows the design closely and that you are kept updated on progress, potential issues, or adjustments.

Risk Management:

We help assess the potential risks associated with contractors, such as previous project delays, quality concerns, or financial stability. By carefully selecting a contractor, they help mitigate these risks.

We can also ensure the contractor follows proper health and safety standards during the construction phase.

Quality Control:

Although the contractor is ultimately responsible for the construction, an architect plays a role in ensuring that the contractor’s work meets the quality standards agreed upon in the design. They will monitor the work during the construction phase through regular site visits, and inspections.

We can ensure that the contractor delivers the work to the required specifications and can intervene if necessary to make adjustments or clarify issues.

Conflict Resolution:

If any issues arise during construction, such as delays, cost overruns, or disputes over quality, we can help mediate between you and the contractor. Their knowledge of the project and expertise in the design helps resolve conflicts efficiently.

Without an architect the client’s role and responsibilities during the construction phase would expand to include the following:

Construction (Design and Management) Regulations 2015 (CDM 2015):

Under CDM 2015, both the client and principal contractor bear significant legal responsibilities regarding health and safety. Without an architects’ services, the following considerations must be addressed:

• Ensuring compliance with all pre-construction and construction-phase health and safety requirements.

• Maintaining a clear and robust process for managing health and safety risks on-site.

• Appointing a suitable replacement to oversee any ‘Principal Designer’ duties and ensuring they are adequately qualified to assess health and safety risks.

• Failure to comply with CDM 2015 may lead to enforcement action, fines, or legal liability.

Building Regulations Compliance:

Without an architects’ services, the drawings and construction still need to be compliant with current Building Regulations. Without an architects’ inspections:

• It will be your responsibility to ensure that any future design or construction changes are compliant with Building Regulations.

• You will need to liaise directly with the relevant Building Control body to resolve any outstanding issues or inspections.

• Non-compliance could lead to delays, additional costs, or enforcement actions.

Contract Administration:

An architects’ role as Contract Administrator ensures that the contract between you and the contractor is executed fairly and efficiently. Without this oversight:

• You may need to take on direct responsibility for monitoring the contractor’s performance and resolving disputes.

• There is a risk of miscommunication or disagreements regarding variations, payments certificates, and timelines.

Design Liability:

If an architect is no longer engaged at RIBA Stage 5 - Construction, there’s no longer design responsibility for:

• Any design elements that require further clarification, adjustment, or modification during construction.

• Any issues arising from the interpretation of the design without our involvement.

• Site liaisons and inspections.
